Smart bms for 11S/ 12S/ 13S/ 14S battery with software program(UART/485 COM) or App control

Availability: In Stock


Brand: GBK

* Required Fields


Quick Overview

This is a smart lithium battery  management system(BMS) which can be used for either Li-ion batteries or LiFePO4 batteries. It can use for 11S, 12S, 13S, 14S or 15S batteries. You can program it on your computer and view all the parameters via your mobile(The Android APP can slightly modify parameter for the BMS while the IOS APP can only read datas and cannot modify data from mobile) when outside. The battery pcm has been upgraded with alloy plates for better heat radiation, but the connection of the PCM has no changed. If you need the bms communication software, app or connection diagram, please download from here: details and docs of smart BMS

We also provide ohter intelligent lithium battery BMS with larger current from 7S to 10S16S~ 20S PCM and 20S~ 30S BMS with software and mobile app control.

The battery BMS is with NTC temperature protection, short circuit protection, over/under voltage protection, over current protection etc.

This Smart PCM use the same COM for charging and discharge which means the charging current can be equal to the discharging current(but we don't suggest charging current to be too large because it is no good for battery). We can also provide customzied charger which compatible with the smart BMS.

If you are going to install the battery with casing which has an ON/OFF switch, then you may need the BMS to have a ON/OFF function leads for connecting to the case's switch. In this case, you can choose the ON/OFF switch for the BMS.

The Smart BMS has upgraded. It's compatible with UART COM and 485 COM.



Li-ion/LiFePO4 programmable BMS 11S-14S, you can use it for 11S. 12S, 13S, 14S or 15S Li-ion or LiFePO4 batteries. You can set the parameters via company and yo can also check parameters on your phone.


Function Testing item Testing condition Parameter Unit
  Min Suggested Max
Overcharge Overcharge protection voltage  charging 4.22 4.25 4.28 V
Overcharge protection delay time / 500 1000 1500 mS
Overcharge protecting release voltage / 4.1 4.15 4.2 V
Balancing BalancingVoltage difference / 4.17 4.2 4.23 V
Balancing start voltage /   30   mV
Balancing  current  / 50   60 mA
Charging current Charging current /     15 A
Over-temp for charging High Temp protection for charging / 62 65 68
Recover from high temp / 52 55 58
Low Temp protection for charging / -12 -10 -7
Recover from low temp / -3 0 3
Over discharge Over-discharge protection voltage disharging 2.42 2.5 2.58 V
Over-discharge protection delay time / 500 1000 1500 mS
Over-discharge protection release voltage / 2.7 2.8 2.9 V
Discharge current Max  continuous discharging current /     30 A
Over discharging protection Over discharging protection current / 55 60 65 A
Over discharging recover Over discharging recover / 32 S
Short circuit Short-circuit protection / 150 200 250 A
Short-circuit protection delay time / 200 400 800 mS
Short-circuit protection recover / Disconnect load for 32seconds
Over-temp for discharging High Temp protection for discharging / 67 70 73
Recover from high temp / 57 60 63
Low Temp protection for discharging / -12 -10 -7
Recover from low temp / -3 0 3
impedance impedance for loop current /     10 mR
Internal power consumption Normal condition with communication module     20 mA
Sleeping      150 200 Ua
Sleeping delay time     8 10 S


If you need the software, app, manaul and diagram for the smart bms, please download from our website.


Additional Info

Additional Information

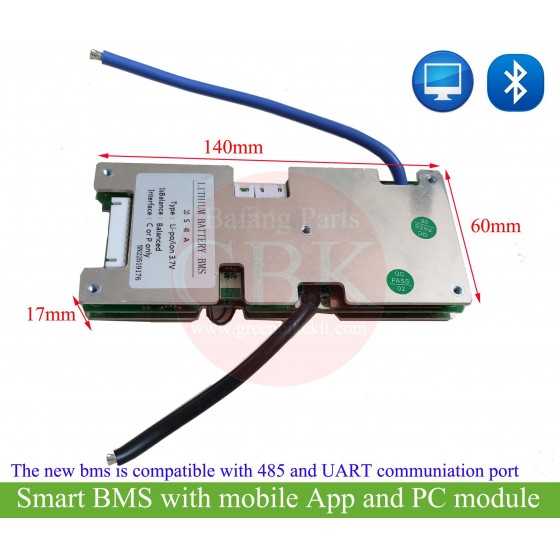

dimension 140x60x17mm
net weight 0.2
Manufacturer GBK
