240W alloy charger for 12V 24V 36V 48V 52V 60V battery

240W alloy charger for 12V 24V 36V 48V 52V 60V battery

Availability: In Stock


* Required Fields


Quick Overview

240W battery charger for lifepo4, li-ion and lead acid battery, suitable for 12V, 24V, 36V, 48V etc. Input voltage 90Volts~240Volts, can be used in any country in the world.

We also provide customized charging voltage, please email us if you need special charging voltage for the charger.

1. It has LED indicator for charging status.

2. The charger is with alluminum alloy shell which is good for heat radiation;

3. It has a cooling fan to protect over heating when charging;

4. Over current protection,over voltage protection, short circuit proteciton and reverse polarity.

5. Full automatic transition of CC,CV(Lithium ion/LiFePo4) and Float/Cut off(Lead acid).

Please email us if you don't know how to calculate the charging voltage;

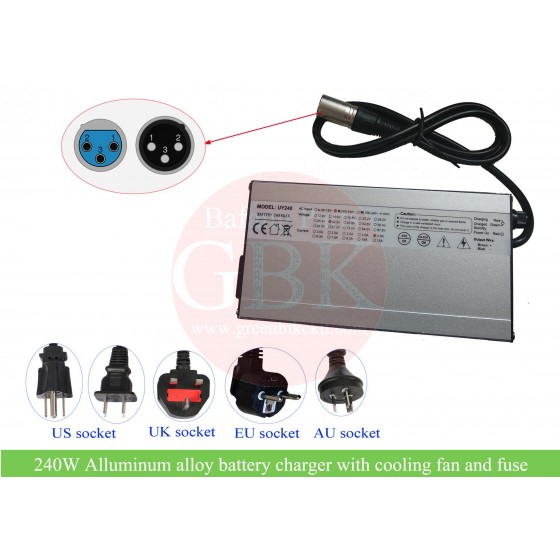

The default connection for the XLR connector is 1 +, 2-, 3 empty.



240W battery charger:

1. AC Input voltage: 90 Volts~240 Volts

2. AC Voltage input frequency: 50~60Hz

3. Charging method: CC and CV

4.  Effeciency: 90%

5. Working Temperature: -10℃~+40

6. Storage Temperature: -400℃~+70℃

7. AC cable length: 1.5m

8. DC cable length: 1.0m

9. charging current: 12V10A, 24V7A, 36V5A, 48V4A, 52V3.5A;

10. Dual LED indicator:  Charging--> red; No load or full charged--> Green;

How to calculate charging voltage for battery?

Normally single cell charging voltage for li-ion is 4.2V, and single cell charging voltage for LiFePO4 is 3.65V; Single cell(12V) charging voltage for lead acid battery is 14.7V, therefore charging voltages for batteries are as follows:

12V LiFePO4(4 cells in series): 4x3.65V-14.6V;

24V LiFePO4(8 cells in series): 8x3.65V=29.2V;

24V Li-ion (7 cells in series): 7x4.2V=29.4V;

24V Lead acid (2 cells in series): 2x14.7V=29.4V

36V LiFePO4(12 cells in series): 12x3.65v=43.8V

36V Li-ion (10 cells in series): 10x4.2v=42V

36V Lead acid(3 cells in series): 3x14.7v=44.1V

48V LiFePO4(16 cells in series): 16x3.65v=58.4V

48V Li-ion(13 cells in series): 13x4.2v=54.6V

48V Lead acid(4 cells in series): 4x14.7v=58.8V

60V Lead acid (5 cells in series): 5x14.7v=73.5V

If your battery is different voltage, please inform us. Or if your battery is with different cells number in series, you can calculate the charging voltage yourself.

The lead time for the charger is about 2-5 days because different customers have different demand for the chargers, and we need a few days to test.

Additional Info

Additional Information

dimension 170*90*50mm
net weight 1.00kg/2.2lbs
Manufacturer No
