M2S TrailSport HT Stealth/ All Terrain HT Stealth/ All Terrain M600 FS/Dual Sport R500 replacement battery 48V 14AH

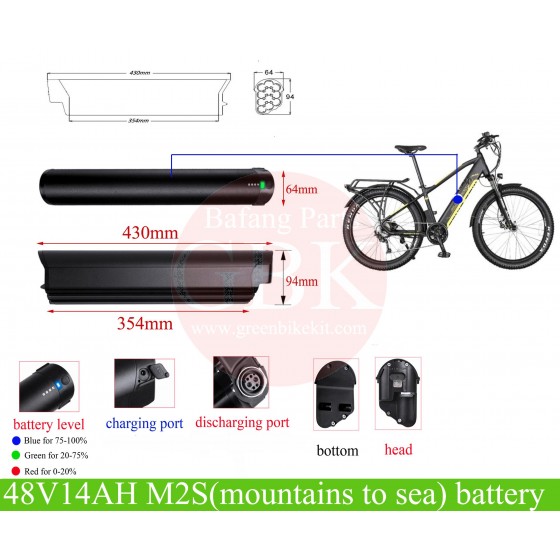

M2S Mountains to Sea TrailSport HT Stealth/ All Terrain HT Stealth/ All Terrain M600 FS/Dual Sport R500 replacement battery 48V14AH. Our battery case is with L1*L2 = 430 X 354mm, and with width*height being 64*94mm. You can also check the picture on our website for the case.

Suitable for:

M2S TrailSport HT Stealth

M2S All Terrain HT Stealth

M2S All Terrain M600 FS

M2S Dual Sport R500

Please note, M2S All Terrain M600 FS and M2S Dual Sport R500 may have two battery types, the at the very beginning, M2S use semi integrated battery for All Terrain M600 FS and M2S Dual Sport R500 bikes, but later, they changed to the full integrated battery for the bikes. We will contact you to double check before shipping.

M2S TrailSport HT Stealth/ All Terrain HT Stealth/ All Terrain M600 FS/Dual Sport R500 replacement battery 48V14AH

1. Rated capacity: 14AH

2. Voltage: 48V

3. Charging Voltage: 54.6V

4. Discharge cutoff voltage: 35.75V

5. Cell: Samsung INR18650-35E or LG INR18650 MJ1

6. Standard charging: 0.2C constant current(CC) charge to 54.6V, then constant voltage (CC) 54.6V  charger will charge current decline to ≤0.05C

7. Continuous discharge current: 30A

8. Pulse/Max discharge current 60A

9. Max charging current : 5A(The charging port of this case cannot bear too large charging Amps)

10. Charging temperature: 0~45℃

11. Discharging temperature: -20~55℃

12. Diamesion: L1*L2= 430 X 354MM; Width * Height = 94 x 64mm.

Charging information

1. Charging voltage: 54.6V

2. Charging current: less than 5A

3. Charging port: Round 5.5*2.1DC port(charging current <4A), 5.5*2.5DC port(charging current ≥4A) or 3pin charging port

Note: The assembling and testing for this battery would take a few days, therefore the lead-time for this battery is about one week.
