Bafang BBSHD 52V /48V 1000W

Availability: In Stock


Brand: Bafang

* Required Fields


Quick Overview

BBSHD 52V 1000W with 500C, DPC18, C961 or C965 LCD display, EB-BUS cable set, brake lever, speed sensor etc. The Bafang BBSHD is with high torque and easy assembling for electric bicycle conversion. The bbshd kit has a controller and PAS inside the motor. If your bike is fat bike, Bafang BBSHD would be the best choice for you. Installation tools will be provided for free with the bbs kit. The lead time is about a week, please be noted.



1. Model:  Bafang BBSHD

2. Voltage: 48V/52V

3. Power: 1000W

4. Rated speed: 25-50KM/H(Speed is adjustable via LCD meter)

5. Current limit: 30A/28A

6. Motor net weight: 5.94KG

7. Max torque: ≥160N.m

8. Max Efficience: ≥80%

9. Cable set for the motor kit

10. LCD display is included with the kit: 500C, 961, 965 or DPC18 display

11. Built-in controller with the motor

12. It has built-in PAS

13. If you want to keep your original brake, you can consider our brake sensor or oil brake sensor for bbs kits

14. If your bike has derailleur system, you can choose our BBS shift sensor for the kit.

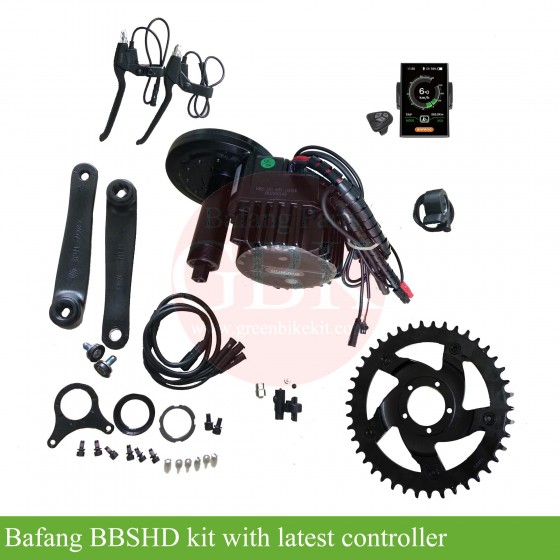

Packing list for the kit:

1. BBSHD motor 48V 1000W

2. C961/C965/500c/DPC18 LCD display

3. Brake lever

4. EB-Bus cable

5. Fixing plates

6. Chain wheel and chain cover

7. Crank Arm

8. Speed detecting sensor and magnets

9. Related nuts

10. Thumb throttle

11. Intallation tools including M33 spanner and hex key.


The kit is the latest version of the bbs kits, it is higher in speed and strong in torque.  The lead time for the BBSHD is about 7 days.

If you need the specification or manuals for the BBSHD, please download or click here
