Bafang-M600-M620-M500-M510-M800-programming-cable
$38.00

Bafang M620 M600 M610 M500 M400 CAN motor programming cable

Availability: In Stock

$38.00

Brand: GBK

Overview

Quick Overview

Bafang M620 M600 M510 M500 M400 M800 etc CAN protocol motor programming cable for wheel size and speed limit lifted.

This probramming cable only set to 29" with 60KM/H,  27.5 with 60KM/H, 26" with 60km/h, 20" with 60km/h and 27.5" with 25km/h.

Other wheei sizes and speed cannot set.

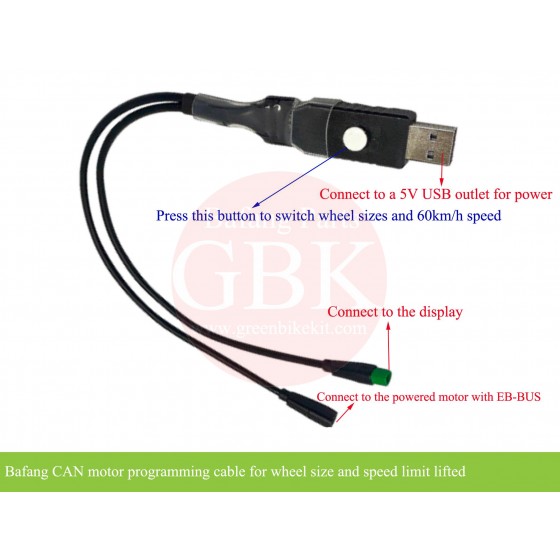

1. Connect the battery to power on the motor, and connect the EB-BUS cable;

2. Connect the programming cable to the display and the EB-BUS display lead respectively;

3. Connect the programming cable to a 5V USB outlet for power(computer, battery 5V USB outlet or display's 5V USB outlet etc);

4. If the programming cable indicator lights up, that means the programming cable is connected successfully. If there is a 25 fault code after connecting, just press the module button to return to normal.

Introduction and operation of programming line buttons:

Press 1 time in a row: wheel diameter 29 inches 60KM/H -2330mm

Press 2 times in a row: wheel diameter 27.5 inches 60KM/H -2240mm

Press 3 times in a row: wheel diameter 26 inches 60KM/H -2100mm

Press 4 times in a row: wheel diameter 20 inches 60KM/H -1550mm

Press 5 times in a row: wheel diameter 27.5 inches 25KM/H -2240mm

If there is a 25 fault code after connecting, just press the module button to return to normal.

For some models, when the wheel diameter setting is switched, the wheel diameter size of the display screen does not change.

At this time, you need to exit the setting and return to the main page of the display screen to re-enter the setting.

Then you can see the wheel diameter you set.

Description

Details

Bafang M620 M600 M510 M500 M400 M800 etc CAN protocol motor programming cable for wheel size and speed limit lifted.

This probramming cable only set to 29" with 60KM/H,  27.5 with 60KM/H, 26" with 60km/h, 20" with 60km/h and 27.5" with 25km/h.

Other wheei sizes and speed cannot set.



Additional Info

Additional Information

dimension No
net weight 0.1kg
Manufacturer GBK
