Bafang-M620-G510-Full-suspension-alloy-frame
$798.00

Bafang Ultra M620 G510 bike frame

Availability: Out of Stock

$798.00

Brand: GBK

Overview

Quick Overview

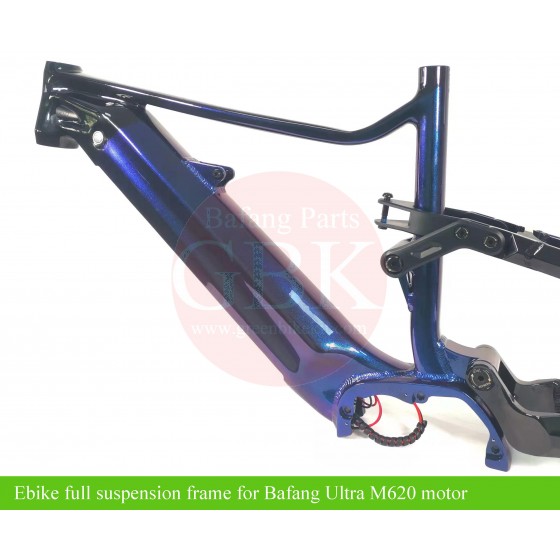

Bafang Ultra M620 G510 full suspension ebike alloy frame, 17" or 19" with gradient blue color. The frame is for 27.5" or 29" bikes only.

The price does not include the battery. If you need the battery, please order separately on our website.

The intube battery case for this bike frame can max build 48V 17.5Ah battery.

Maximum tire: 29x3.0;

Head tube: 130mm;

Headtube angle: 64° ;

Real spacer: 148mm;

Material: 6061-T6 alloy

Description

Details

Bafang Ultra M620 /G510 full suspension ebike frame, 17", 19"


17"
19"
Seat Tube C-T
440mm
470mm
Seat Angle
71.5°
71.5°
Head Tube
130mm
130mm
Head Tube Angle
64°
64°
Bottom Bracket Offset
-8
-8
Chain Stay
470mm
470mm
Top Tube (horizontal)
610mm
638mm
Fork Rake / Offset
44mm
44mm
Fork Length (A2C)
585mm
585mm
Length Specified Shock
250/230mm
250/230mm
Travel Specified Shock
70/57.5mm
70/57.5mm
Wheel Size
27.5"/ 29er
27.5" /29er
Rear Wheel Travel
176.7/148.9mm
176.7/148.9mm
Maximum Allowed Front Fork Travel
180mm
180mm
Wheelbase
1263mm
1291mm
Reach
440.8mm
468mm
Stack
631mm
631mm

The lead time will take about 2-4 days.



Additional Info

Additional Information

dimension 17" /19
net weight 7kg
Manufacturer GBK
