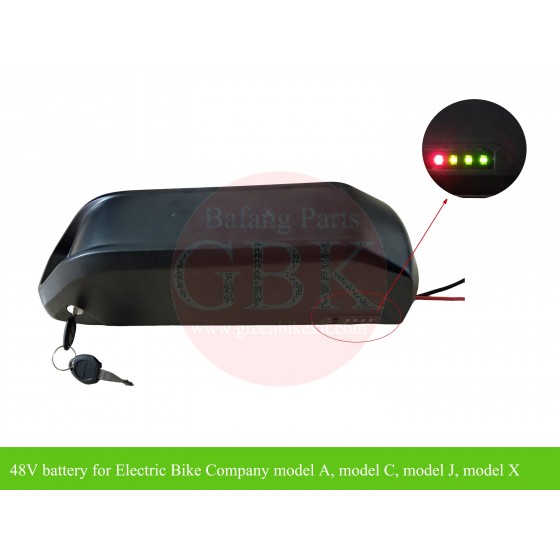

48V Replacement battery for Electric Bike Company model A, model C, model J, model X

Replacement battery for Electric Bike Company model A, model C(downtube style), model J and model X.

Battery Capacity: 14AH ~21AH depending on the cells you choose, the larger Ah the battery has, the more mileage you can get each charge; Different AH batteries are interchangeable since the mounting foots are the same

Suitable for

EBC Model A

EBC model C(downtube type)

EBC model J

EBC model X

If your EBC model C is with rear rack type battery, this one will not fit, please note.

48V downtube battery for electric bike company model A, model C(downtube style), model J and model X.

1. Rated capacity: 14AH~ 20AH depends on the cells for building the pack; the more capacity the battery has, the longer distance you can ride with each charge

2. Voltage: 48V

3. Charging Voltage: 54.6V

4. Discharge cutoff voltage: 25.75V

5. Cell:  LG INR18650 MJ1, Samsung NR18650-35E or Samsung INR21700-50G;

6. Standard charging: 0.2C constant current(CC) charge to 54.6V, then constant voltage (CC) 54.6V  charge till charge current decline to ≤0.05C

7. Continuous discharge current:  20A, 25A,30A, 40A 50A

8. Pulse/Max discharge current: 50~100A

9. Max charging current : 5A(limited by the default charging port of the battery case); If you want a larger charging current, we can change to 3pin charging port for you;

10. Charging temperature: 0~45℃

11. Discharging temperature: -20~55℃

12. Dimension: 368 X 90 X 140mm, 368 X 90 x 113mm, or 368 X 90 x 141mm or 368 X 95 X 125mm

13. The length for these cases are the same and these cases share the same mounting foot which means the batteries are interchangeable;  the width and the height would vary with different models.

14. Different chargers for option;

15. It has an ON/OFF switch and 4 LED battery capacity indicator.

The assembling and testing for the battery would take a few days, therefore the lead time is about one week,  please be noted.
