17S-50A-60V-battery-management-system-bms
$25.00

17S 30A 40A 50A BMS for 60V Li-ion battery pack with Balance LED light

Availability: In Stock

$25.00

Brand: GBK

* Required Fields

Overview

Quick Overview

17S 30A 40A 50A BMS /PCM, Battery management system for 60V Li-ion battery, continuous discharge current could be 30A, 40A or 50A, peak/pulse discharge current could be 100A.

Common Port can handle large charging current; separate port would be with smaller charging current(5A~10A, please refer to detail information on our website);

This BMS has LED for balance, you will get to know which cells are in balance status and which cells are not in balance status.

Description

Details

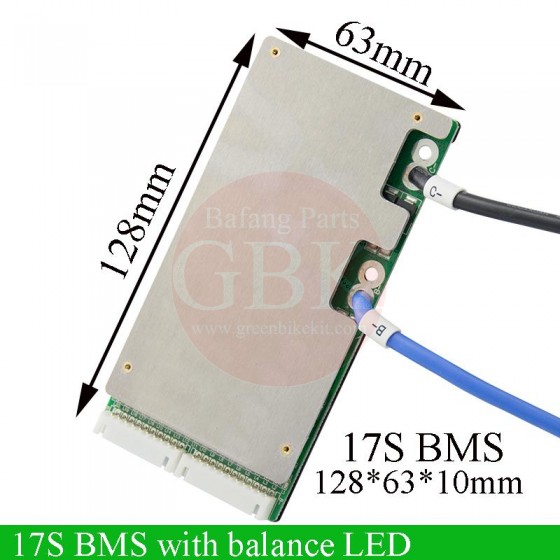

17S 30A 40A 50A BMS(battery management system) for 60V li-ion battery

Type Item Parameter
Discharging Continuous discharge current 30A 40A 50A
Peak/pulse discahrging current 60A 80A 100A
Overcurrent protection current 3-5times of the continuous discharge Amp
Charging Charging voltage Cells number in serial *4.2V
Common port max charging current 20A 30A 40A
Separate port mx charging current 5A 5A 10A
Overcharge protection Overcharge protection voltage  4.25V±0.03V
Overcharge protection delay time 1000mS
Overcharge protecting release voltage 4.19V±0.03V
Balance Balance detecting voltage ≥4.18V
Balance  release voltage <4.18V
Balance current 20-30mA
Over-discharge protection Over-discharge protection voltage 2.8V±0.1V
Over-discharge protection delay time 100mS
Over-discharge protection release voltage 2.9V±0.1V
Over-current protection Over-current detecting voltage 150mV
Over-current protection delay time 100mS
Over-current recover Cutoff load or charge the battery
Short circuit protection Short-circuit protection  Short circuit with extermal load
Short-circuit protection delay time 200uS
Short-circuit protection recover Cutoff load or charge the battery
impedance ≤20mΩ
Self electricity consume Working current <40uA
Sleeping current(Battery in overdischarge) <30uA
Additional Info

Additional Information

dimension 95x87x10mm
net weight 0.1kg
Manufacturer GBK
