GBK-100F 250~350W36V brushless front motor, high speed, light weight

Be the first to review this product


Availability: In stock

Quick Overview

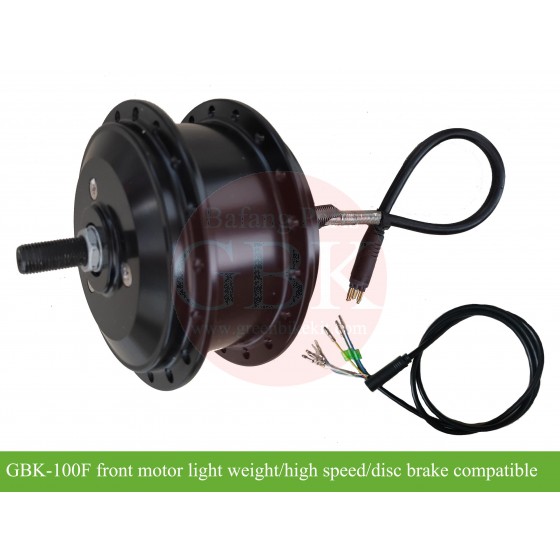

GBK-100F 250~350W36V brushless front motor, high speed, light weight, Hall sensor or sensorless, suitable for 16"~28" wheel. Sensor and sensorless compatible; disc brake and rim-brake are the same fork size.


Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • brushless-hub-motor-36v-250watts
  • 36v-250watts-dc-hub-motor-for-electric-bicycle

* Required Fields



GBK-100F 36V250~350W brushless hub motor

1. Drving: Frong driving

2. Direct driving motor

3. Voltage: 36V

4. Suitable wheel size: 16", 20", 22", 24", 26" and 700C

5. Speed: 20~35km/h

6. Hall sensored or Sensorless

7. Rim brake and Disc brake available

8. High speed and light weight

9. Waterproof connector available


Note: 201RPM is for 24"~28"; 328RPM is for 16"~22". The higher RPM you choose, the faster speed the motor would be, while weaker torque the motor becomes; the smaller RPM you choose, the stronger torque the motor would be and the lower speed the motor becomes.

Additional Information

dimension fork size 100mm
net weight 2.2KG/4,85lbs
Manufacturer GBK
