BMS for 10S/36V ebike Dorado battery with mini size 65x35x9mm/with ON/OFF switch

Availability: In Stock

$21.50

Brand: GBK

Overview

Quick Overview

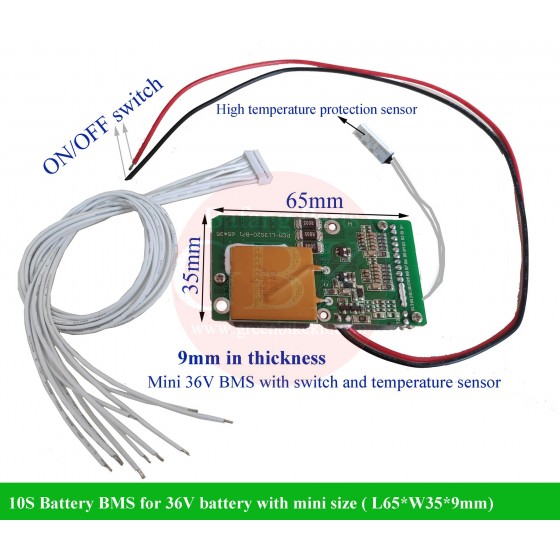

BMS for 36V Li-ion ebike battery with countinuous discharge current being 20A. This BMS is small in dimension(L*W*H: 65*35*9mm) which you can install it into many different battery cases. If you want to make a 5V output for charging your mobile or ipad, you can add a 5V1A USB PCB when ordering the PCM.

The battery BMS has a ON/OFF switch, if you don't have swtich for your battery, you can just solder the two switch wires together.

The battery BMS also has a high temperature protection sensor; if the battery is too high in temperature, the BMS will cut off power to protect the battery.

Description

Details

PCM for ebike lithium ion 36V battery with continous discharge current being 20A. The pulse discharging current is 40A. The BMS has ON/OFF switch, if you don't need ON/OFF switch for your battery, you can short circuit the on/off switch. If you want to make a 5V USB output from the battery, you can add a 5V1A USB output PCB when ordering the BMS.

The BMS specification is as follow:

Function Testing item Sign Criteria Mini Value standard value Max value Unit
Over charge protection Over-charge protection voltage Vc1 At charge off 4.20  4.25  4.30  V
Over-charge protection delay time Tc1 - 0.50  1.00  1.50  S
Over-charge protection releasing voltage Vc2 - 4.10  4.15  4.20  V
Charging current Charging Ioc - 1.00  3.00  5.00  A
Over discharge protection Over-discharge protection voltage Vd1 At discharge off 2.60  2.70  2.80  V
Over-discharge protection delay time Td1 - 500  1000  1500  mS
Over-discharge protection releasing voltage Vd2 - 2.90  3.00  3.10  V
Over current Over-current value Ioc1 Pack Voltage=36V 50  60  70  A
Over-current delay time Toc1 Pack Voltage=36V 10  20  80  mS
Over current release Over current release term Disconnect load for 2 seconds and charge the battery
Discharge current Maximum Continuous Discharge Current Ioc 20  A
Discharging temp. protection Discharging protection temp. Pack Voltage=36V 70  75  80
Discharging high temp. protection releasing temp. Pack Voltage=36V 45  55  65
Short circuit protection Short circuit protection current Tshort Pack Voltage=36V 200  A
Short circuit protection delay time Tshort Pack Voltage=36V 200  400  600  uS
Short circuit protection recovery Disconnect load for 3 seconds and charge the battery
Impedance dicharging current circuit impedance Ron1 Pack Voltage=36V 30
Self-consumption current Icc1 Pack Voltage=36V 30  150  uA
Additional Info

Additional Information

dimension L*W*H: 65*35*9mm
net weight 0.1
Manufacturer GBK
