48V15AH/17.5AH Ride1up 700 series/cafe cruiser replacement battery

48V15AH~17.5AH intube battery Ride1up 700 series/cafe cruiser replacement;

There are several types this model battery cases with different sizes, and they are not interchangeable, therefore, please double check your original battery size.

The charging connector will be 5.5x2.1DC or 5.5x2.5DC or the 3 pin charging connector( mini XLR 3 pin connector ); we will install the correct one according to your bike model.

48V in-tube ebike battery

1. Rated capacity: 15AH~17.5AH

2. Voltage: 48V

3. Charging Voltage: 54.6V

4. Discharge cutoff voltage: 35.75V

5. Cell: INR18650-35E or INR21700 50G

6. Standard charging: 0.2C constant current(CC) charge to 54.6V, then constant voltage (CC) 54.6V  charge till charge current decline to ≤0.05C

7. Continuous discharge current: 20A-40A(depending on your bike model)

8. Pulse/Max discharge current 60A-80A

9. Max charging current : 5A(The charging port of this case cannot bear too large charging Amps)

10. Charging temperature: 0~45℃

11. Dischargeing temperature: -20~55℃

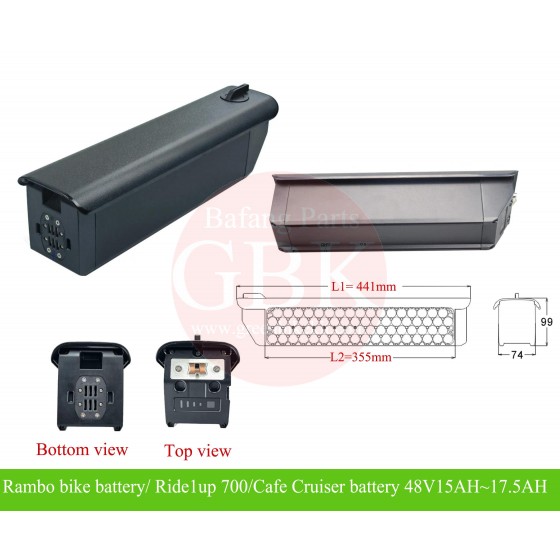

12. Diamesion: L1=441mm, L2=355mm, width 74mm, height 99mm; There are several types this model battery cases with different sizes, the downtube for your bike is fixed, therefore the battery case is also fixed(cannot interchangeable with other cases), please double check before ordering.

Charging information

1. Charging voltage: 54.6V

2. Charging current: less than 5A

3. Charging port: Round 5.5*2.1DC port(charging current <4A), 5.5*2.5DC port(charging current ≥4A) or 3 pin mini XLR charging port

Note: The assembling and testing for this battery would take a few days, therefore the leadtime for this battery is about one week.
