- Overview
-
Quick Overview

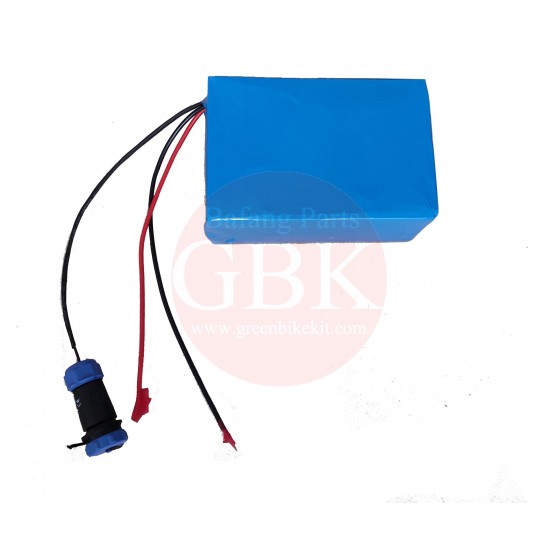

36V ebike compact battery with customized battery size and light weight. BMS-10S-25/60A is built in with the battery; alloy chargers for options. The battery is made by premium cells; it has no battery case, but we have cell holders for building the battery to protect the cells.
- Description
-
Details
36V battery, 10Ah-25AH lithium-ion electric bicycle battery with customized battery size
1. Rated Capacity: 10AH-25Ah
2. Voltage: 36V
3. Charging Voltage: 42V
4. Discharge cutoff voltage: 27.5V
5. Cell model: INR18650-35E or INR21700-50G
6. Standard charging: 0.2C constant current(CC) charge to 42V, then constant voltage (CC) 42V charge till charge current decline to ≤0.05C
7. Continuous discharge current: 25A-50A
8. Pulse/Max discharge current 60A-100A
9. Max charging current : 5A
10. Charging temperature: 0~45℃
11. Dischargeing temperature: -20~55℃
12. BMS is built with the battery
13. Charger for option with different amps
Charger information
1. Charging voltage: 42V
2. AC input: 90V~120V or 220V~240V
3. Max Charging current: 5A
Note: The assembling and testing for this battery would take about 3-5 days, therefore the leadtime for this battery is about one week.
- Additional Info
-
Additional Information
dimension customized size available net weight 2.25kg Manufacturer GBK - Reviews
-
