24V11.6A bottle battery/ dolphin battery with charger

Be the first to review this product


Availability: In stock

Quick Overview

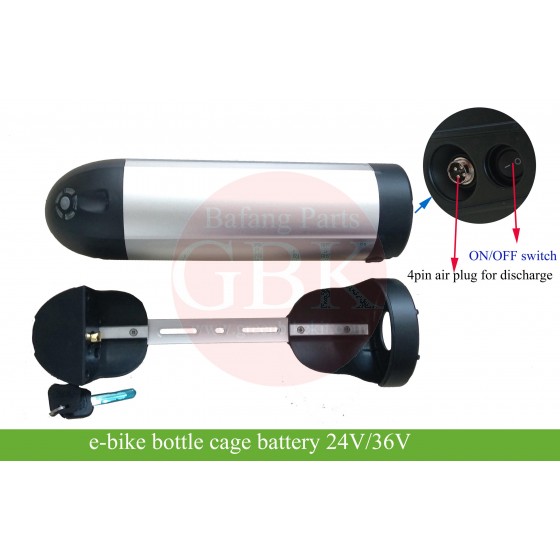

24V11.6AH Li-ion bottle battery for electric bicycle, mounted on the bicycle frame, including charger. Long lifecycle and high performance.


Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • 24v-12ah-li-ion-bottle-battery-for-electric-bicycle

* Required Fields



24V11.6AH Li-ion bottle battery-mounted on the bicycle frame, including charger

1. Rated capacity: 11.6AH

2. Minimum capacity: 10AH

3. Voltage: 24V

4. Charging Voltage: 29.2V

5. Discharge cutoff voltage: 20.0V

6. Cell: NCR18650PF (7S4P)

7. Standard charging: 0.2C constant current(CC) charge to 29.2V,then constant voltage (CC) 29.2V  charge till charge current decline to ≤0.05C

7. Continuous max discharge current: 10A

8. Pulse discharge current 20A at 10sec

9. Max charging current : 5A

10. Charging temperature: 0~45℃

11. Dischargeing temperature: -20~55℃

12. Diamesion: 91x345mm(diameter X heigh)


Charger information

1. Charging voltage: 29.2V

2. AC input: 90V~120V or 220V~240V; if you 90V~240V input, please contact us

3. Charging current: 3A

Additional Information

dimension 91x345mm(diameter x height)
net weight 3.1KG
Manufacturer GBK
