- Overview
-
Quick Overview
48V 14AH Hailong 01 Hailong downtube battery.
The mounting plate is included.
Charging port is 2.1DC or 2.5DC port.
Discharging socket, 4pin blades contacts/5 pin golden contacts/ 5pin blade contacts connector. For details of the discharging connector, please check here: Hailong connector
Different chargers for options.

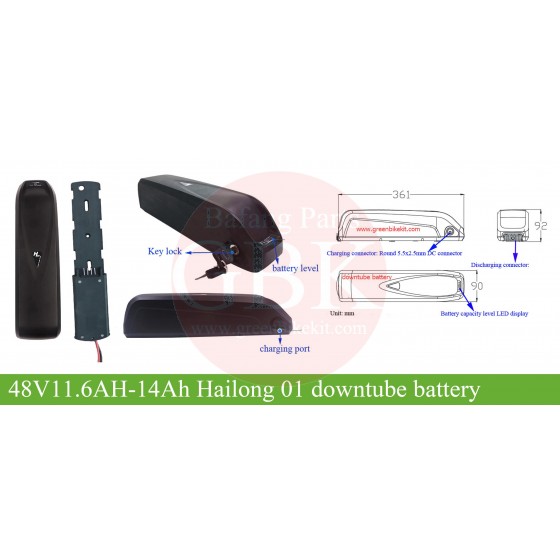

Hailong 01 battery dimension: 361x90x92mm
- Description
-
Details
48V14 AH Hailong downtube battery
1. Rated capacity: 14AH
2. Voltage: 48V
3. Charging Voltage: 54.6V
4. Discharge cutoff voltage: 35.75V
5. Cell: INR18650 35E or INR21700 50G
6. Standard charging: 0.2C constant current(CC) charge to 54.6V, then constant voltage (CC) 54.6V charge till charge current decline to ≤0.05C
7. Max Continuous discharge current: 20A-30A
8. Pulse/Max discharge current 60A-100A
9. Max charging current : 5A
10. Charging temperature: 0~45℃
11. Dischargeing temperature: -20~55℃
12. Diamesion: 361x90x92mm
Charging information
1. Charging voltage: 54.6V
2. AC input: 90V~120V or 220V~240V
3. Charging current: 2A, 3A or 4A
Note: The assembling and testing for this battery would take a few days, therefore the leadtime for this battery is about one week
- Additional Info
-
Additional Information
dimension 361x90x92mm net weight 3.6kg Manufacturer GBK - Reviews
-
