Hidden wire brake sensor/HWBS for electric bicycle without using the normal e-brake lever

Be the first to review this product

Regular Price: $9.99

Special Price $5.50

Availability: In stock

  • Buy 30 for $5.10 each and save 8%

Quick Overview

Hidden wire brake sensor can use normal brake, without the use of special brake lever. Sensor installed on the soft shaft of the brake, detection the movement of brake lines online. HWBS is a long life, small volume, free maintenance, micro-consumption electronic, low voltage power supply, non-contact detection of magnetic sensors. Internal PLL circuit can ensure the stable output even use in vibration situations.


Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Hidden-Wire-Brake-Sensor-without-the-use-of-special-brake-lever-grip
  • HWBS-installation-instruction-hidden-wire-brake-sensor-installation-instruction

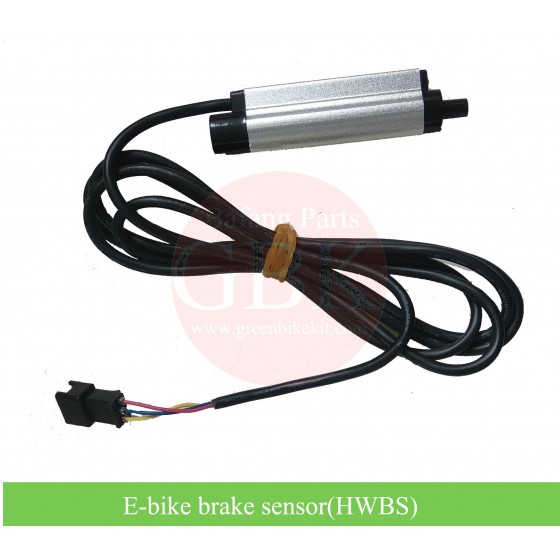

Hidden wire brake sensor for electric bicycle

1. Rated Voltage: 4.5-6V (DC)
2. Current without braking: 2mA
3. Current with braking: 3.6mA
4. Lead tension: >20N
5. Corresponding time when braking: <0.001S
6. Effective working distance: 2~3mm
7. Mechanical life: >2M times
8.  Electrical life: >20M times
9. Insulation dry condition: >20M ohm
10.  Insulation wet condition: >2M ohm

Wire Connection
1, Red: +5V

2. Yellow: GND(Brake black wire)

3.  Blue: Signal (Brake Orange/Green wire)

Additional Information

dimension No
net weight 0.2
Manufacturer No
